TEC

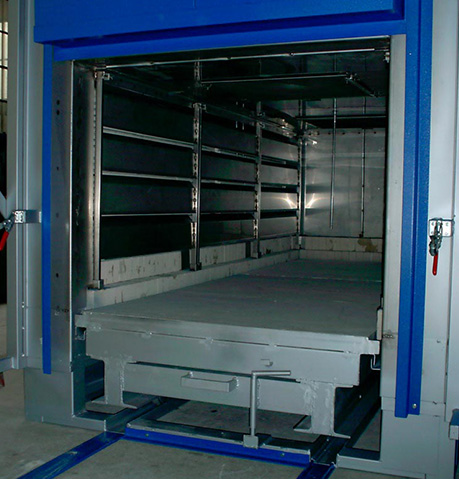

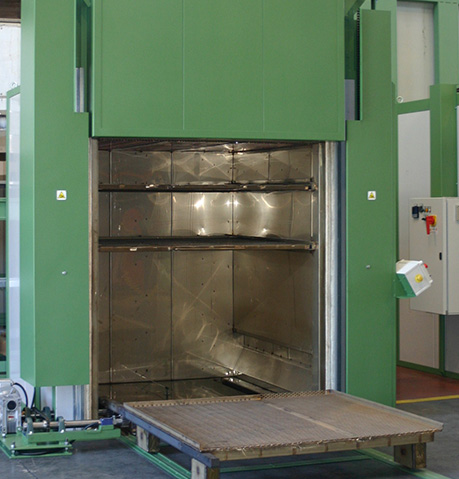

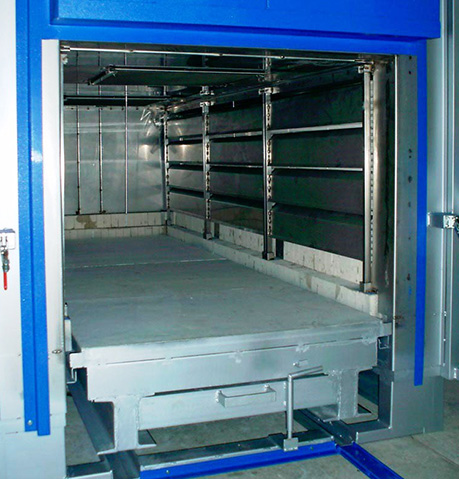

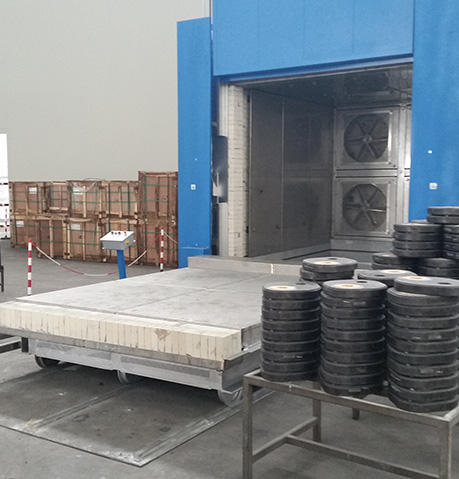

INDUSTRIAL CHAMBER OVEN WITH MOBILE DOLLY
MAX 900°
Our model TEC - oven with movable dolly is able to perform different machining processes. Thanks to its versatility in the design phase we are able to meet your specific requirements.
Our model TEC - oven with movable dolly is able to perform different machining processes. Thanks to its versatility in the design phase we are able to meet your specific requirements.
TEC is a metal construction with walls made of stainless steel sheet.
Chamber heating is obtained electrically with resistance units positioned on special media or by direct or indirect heat exchangers powered by gas, methane or fuel oil burners.

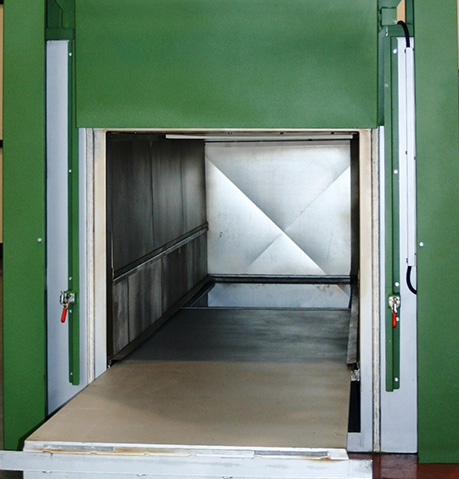

The bottom of the chamber is protected by a sole in stainless steel AISI 310S.
- Electronic adjustments of temperature through static power relays with the possibility of programming and data logging.

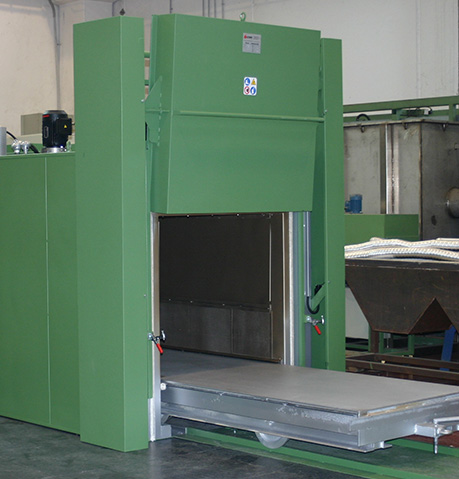

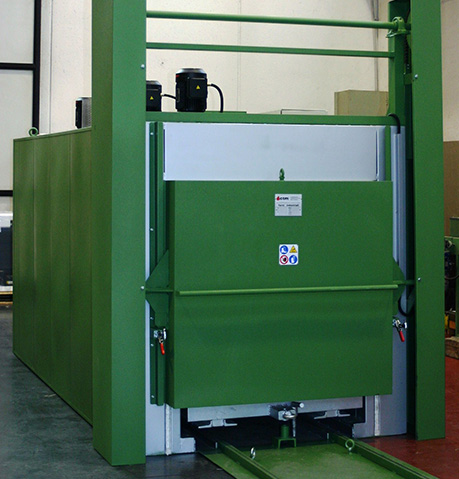

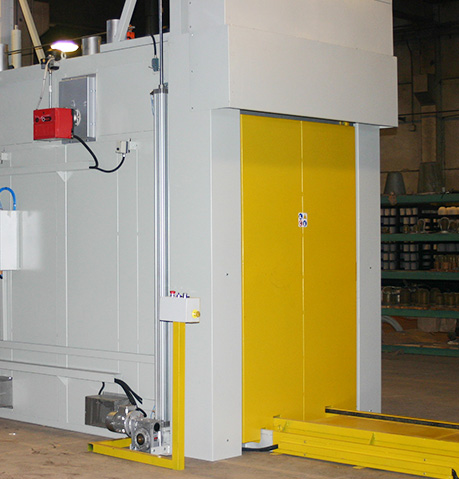

- Door opening: with counterbalanced guillotine with manual or servo-assisted handling system.
- Cementing
- Tempering
- Annealing
- Chemical glass annealing
- Standardization treatment
- Hardening - metal parts and molds components
| Model TEC |
Useful dimensions of the chamber | Rated power | Capacity | ||
| Width | Height | Depth | Kw | Lt | |
| TEC/1 | 900 | 900 | 1500 | 75 | 1215 |
| TEC/2 | 1000 | 1200 | 1800 | 110 | 2160 |
| TEC/3 | 1200 | 1500 | 2200 | 130 | 3960 |
