INDUSTRIAL GLASS BENDING FURNACES

temperature MAX 700°

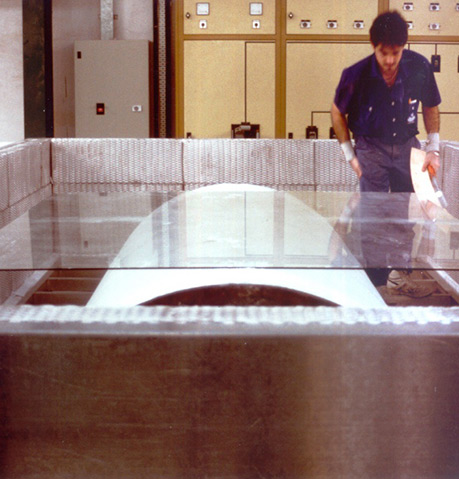

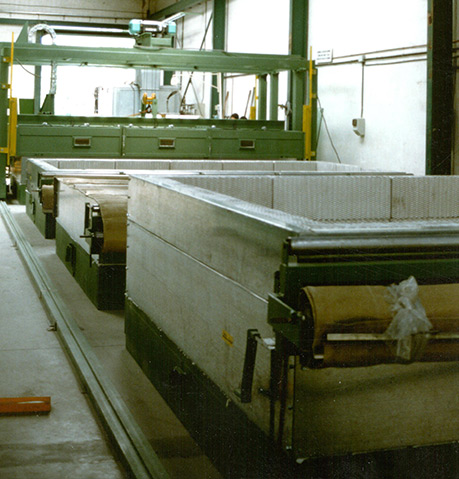

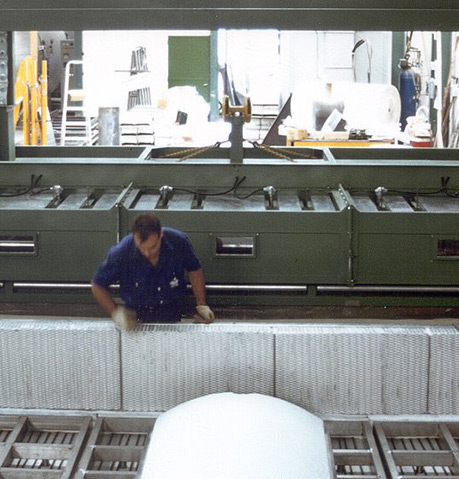

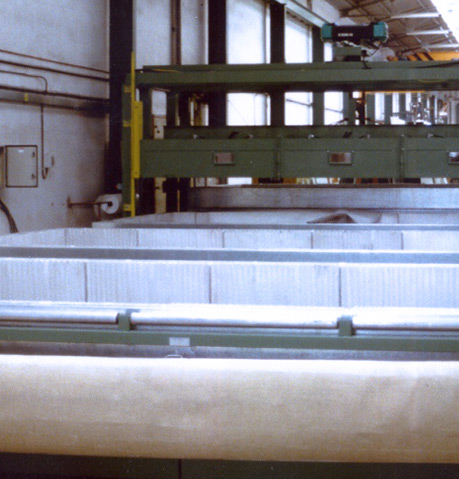

Glass bending furnace with mobile ceiling and PLC-controlled movement.
Electronic regulation with functioning and travel control.





Glass bending furnace with mobile ceiling and PLC-controlled movement.
Electronic regulation with functioning and travel control.

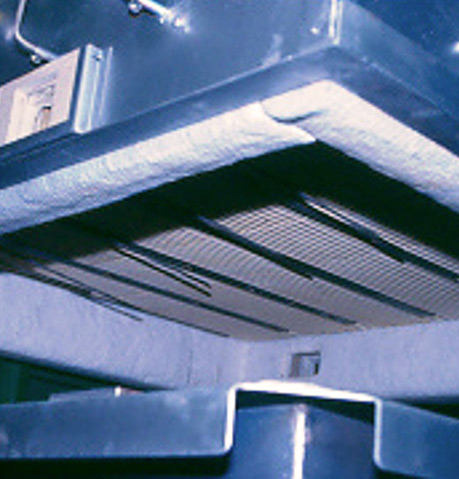

Chamber heating with open channel supporting plates positioned in the top part of the ceiling.

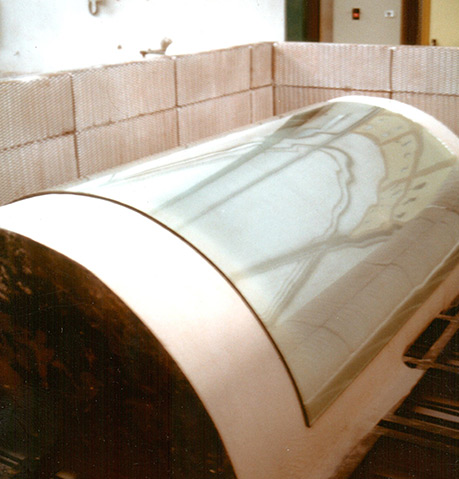

Insulated, independent and fixed preheated bending die chambers with height adjustment for optimal performance with different bending radius.
Independent covers to be used in the sheet preheating and cooling phases.
Control panel interlocked with the mobile part of the plant.


  • Glass Bending
Model
BB		 Glass Dimensions External Dimensions Useful Dimensions of the Chamber Rated power
Width Depth Width Height Depth Width Height Depth kw
BB/1220 1500 2000 4000 1700 16000 1600 600 2100 75
BB/2025 2000 2500 4500 1700 18000 2100 600 2600 100
BB/2030 2000 3000 4500 1700 20000 2100 600 3100 120
BB/2530 2500 3000 5000 1700 20000 2600 600 3100 150
BB/2535 2500 3500 5000 1700 23000 2600 600 3600 175
BB/2540 2500 4000 5000 1700 35000 2600 600 4100 200
BB/3035 3000 3500 5500 1700 30000 3100 600 3600 250
DL
DL - INDUSTRIAL TUNNEL FURNACE WITH VENTILATED CHAMBERS

Our modular tunnel with ventilated chambers enables to determine the optimal length of the sheets to achieve an efficient hourly production of extrusion.
TEC

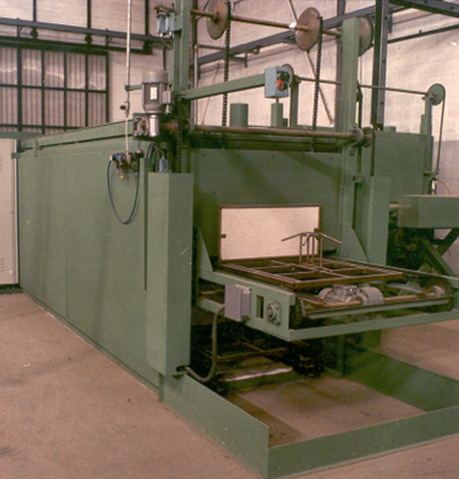

TEC - INDUSTRIAL CHAMBER OVEN WITH MOBILE DOLLY

Our model TEC - oven with movable dolly is able to perform different machining processes. Thanks to its versatility in the design phase we are able to meet your specific requirements.
TL
TL - INDUSTRIAL FURNACE WITH SUPERIMPOSED VENTILATED CHAMBERS

Among the various types of furnaces with ventilated chamber, Ctm realizes a product with multiple superimposed chambers.
TL is suitable for those activities which require a differentiated preheating treatment, thereby optimizing the thermal cycle time.
TC
TC - INDUSTRIAL GLASS CHEMICAL TEMPERING OVEN

Ctm Srl, working in glass field for a long time, proposes plants for the treatment of glass chemical tempering. The process is done at temperatures that do not cause optical deformation.
LV
LV - INDUSTRIAL GLASS COATING LINE

The glass coating line designed by our technical team consists of three process areas: a washing machine to clean the product, a coating machine for colouring and finally the oven area to dry the finished product.
