TE
INDUSTRIAL MUFFLE OVEN
MAX 1100°

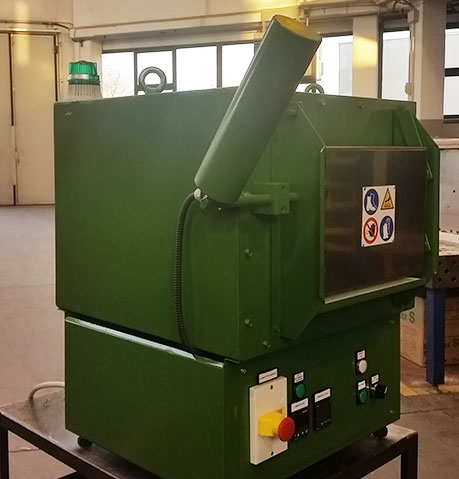

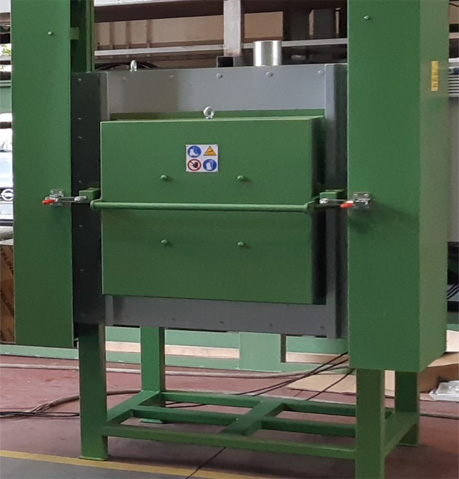

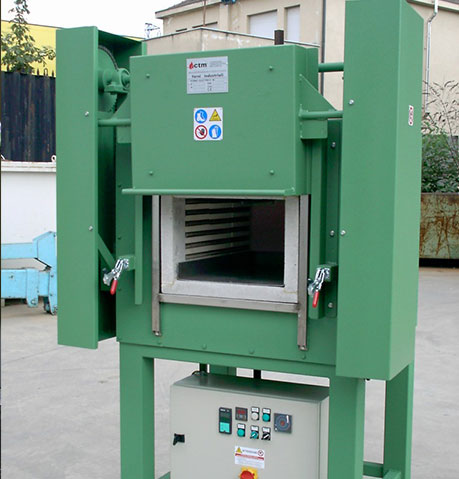

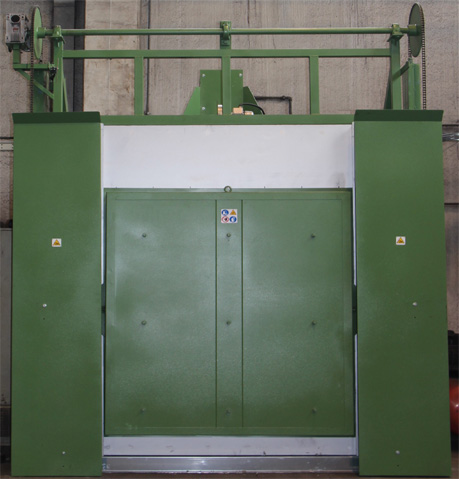

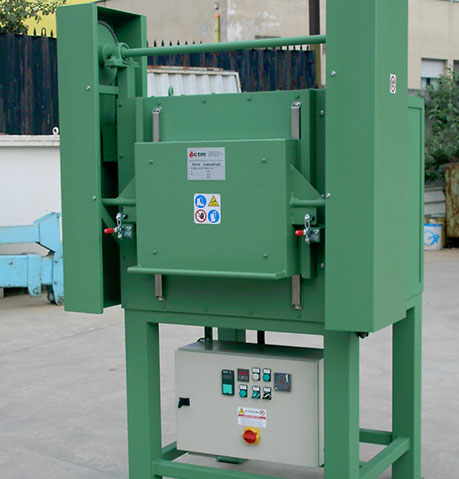

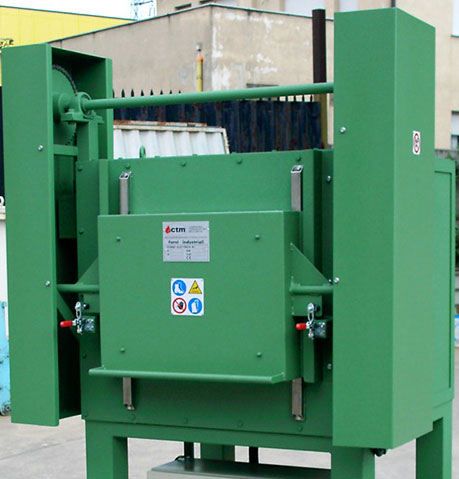

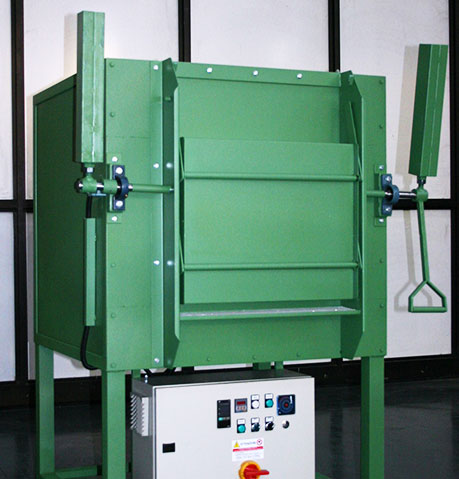

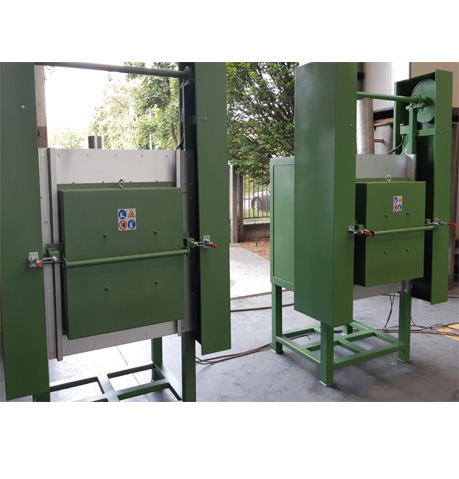

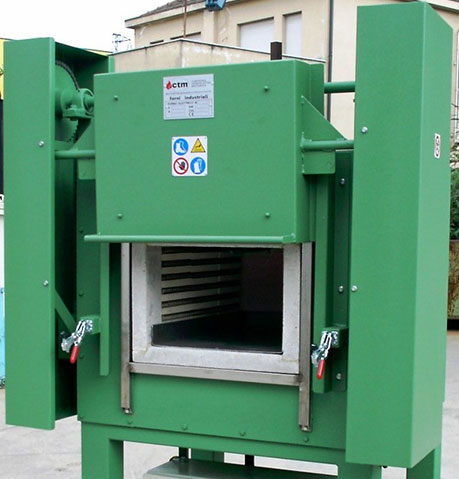

Within its own product line, Ctm proposes the muffle furnace TE, a metal construction, with walls of stainless steel sheet, capable of reaching temperatures up to 1150 °C.
Within its own product line, Ctm proposes the muffle furnace TE, a metal construction, with walls of stainless steel sheet, capable of reaching temperatures up to 1150 °C.

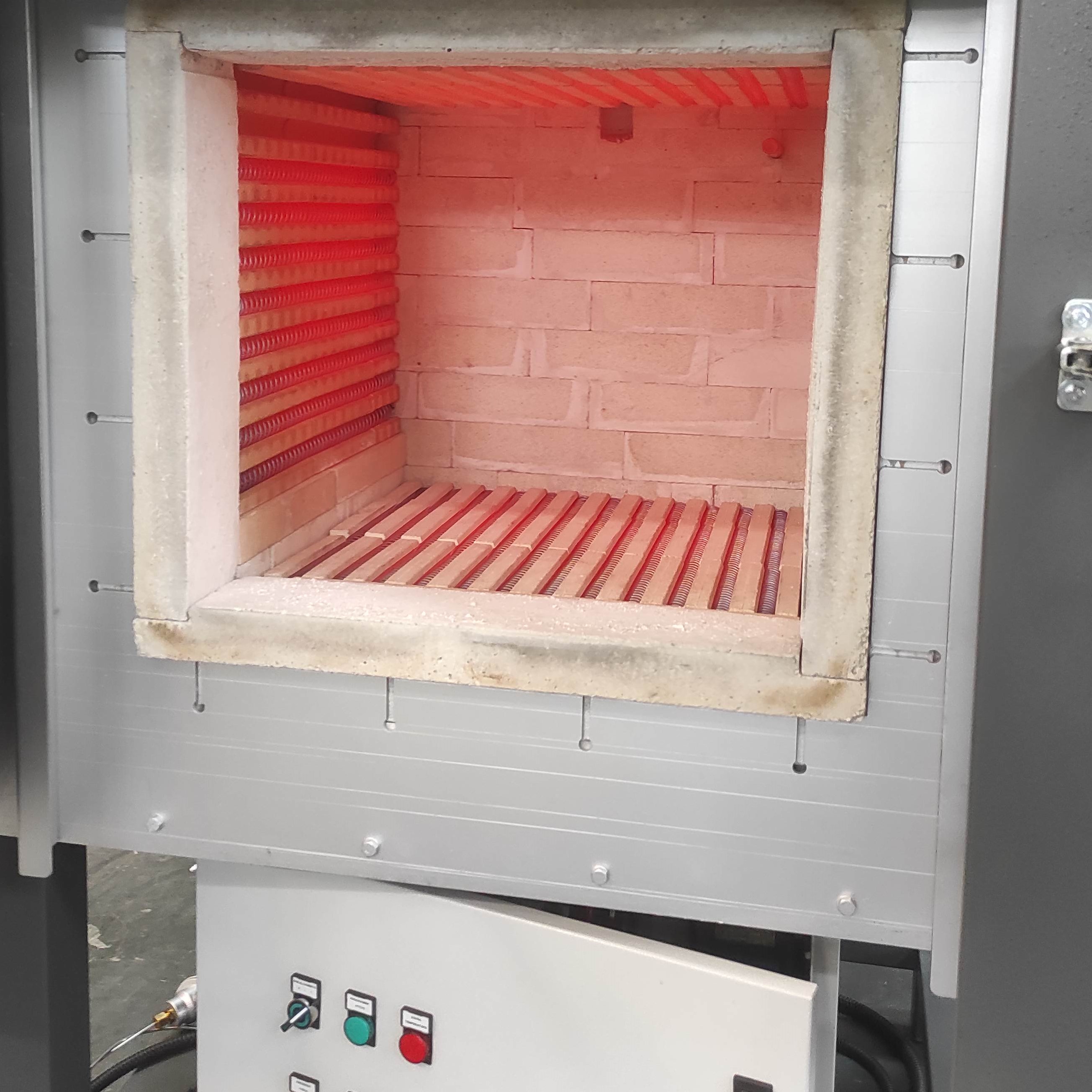

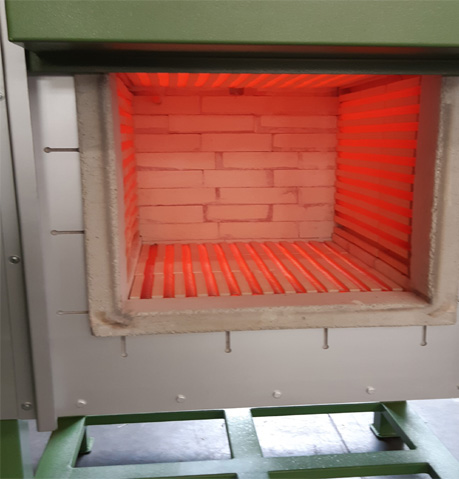

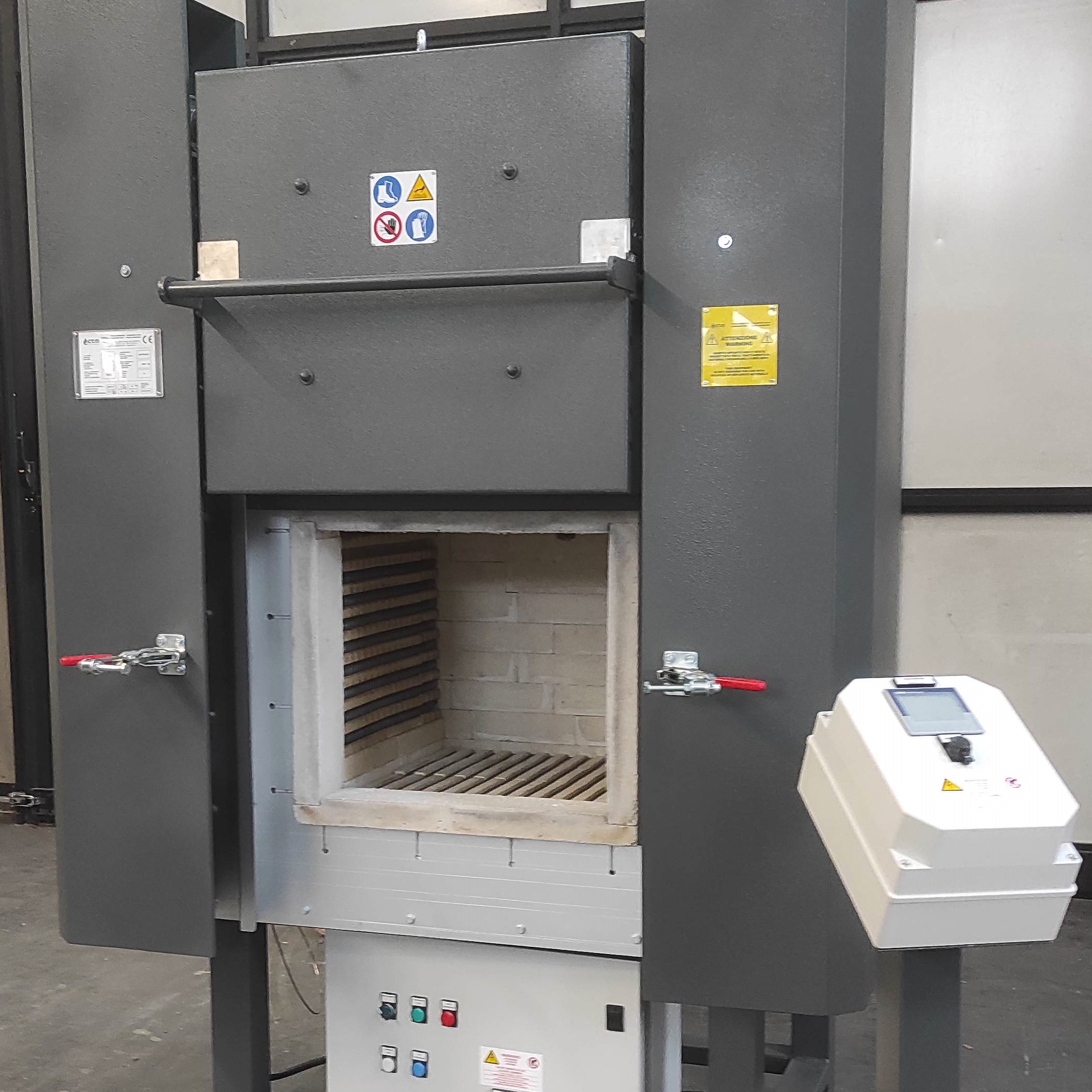

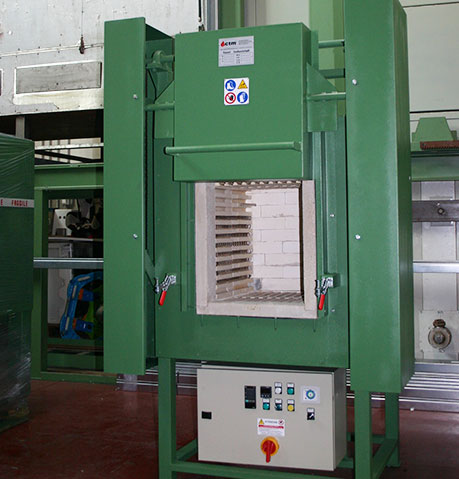

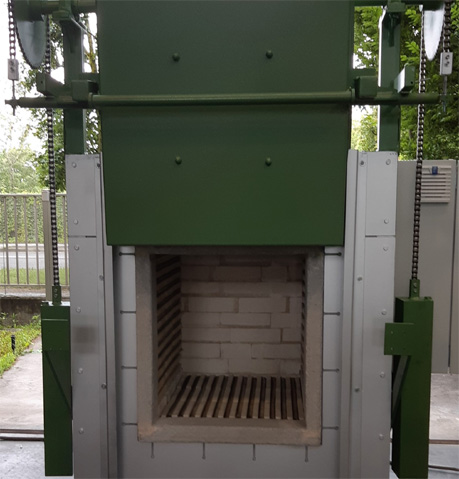

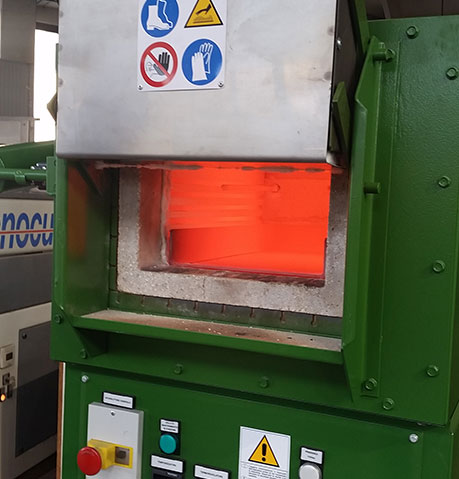

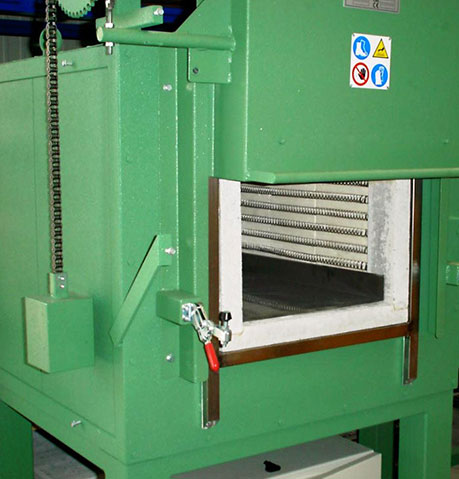

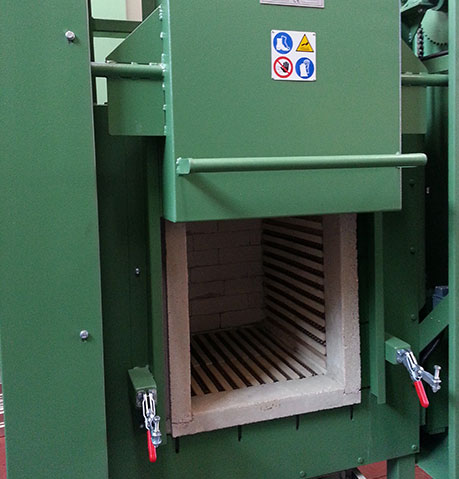

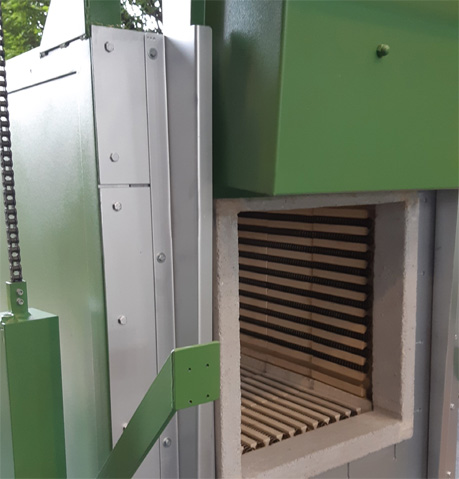

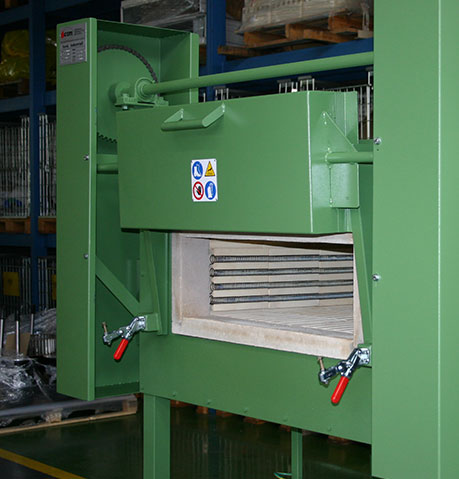

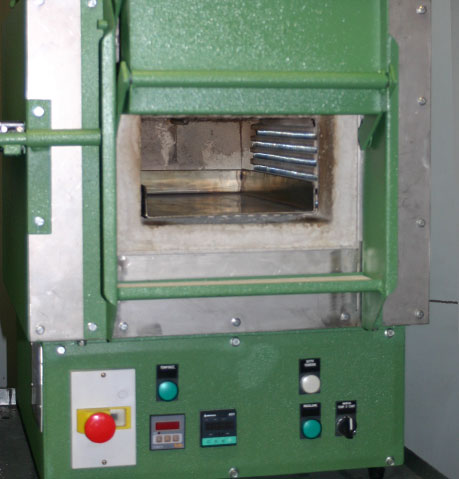

TE performs high temperatures treatments through a process of electric heating obtained with the electric resistances positioned uniformly on the walls of the furnace chamber. The resistances are exposed or protected depending on the type of processing to be performed.

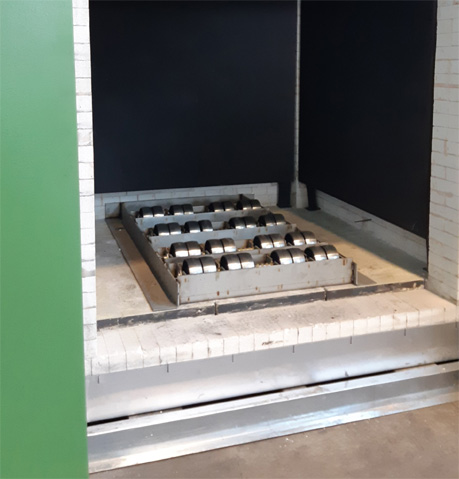

The bottom is protected by a sole in stainless steel AISI 310S.
- Electronic adjustments of temperature through static power relays with the possibility of programming and data logging.

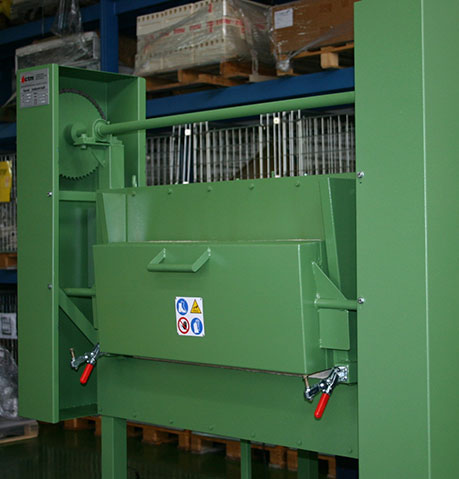

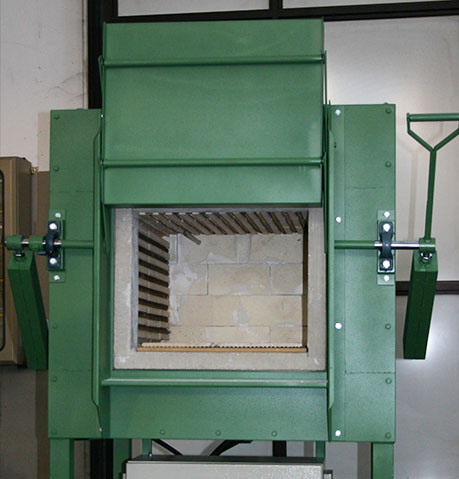

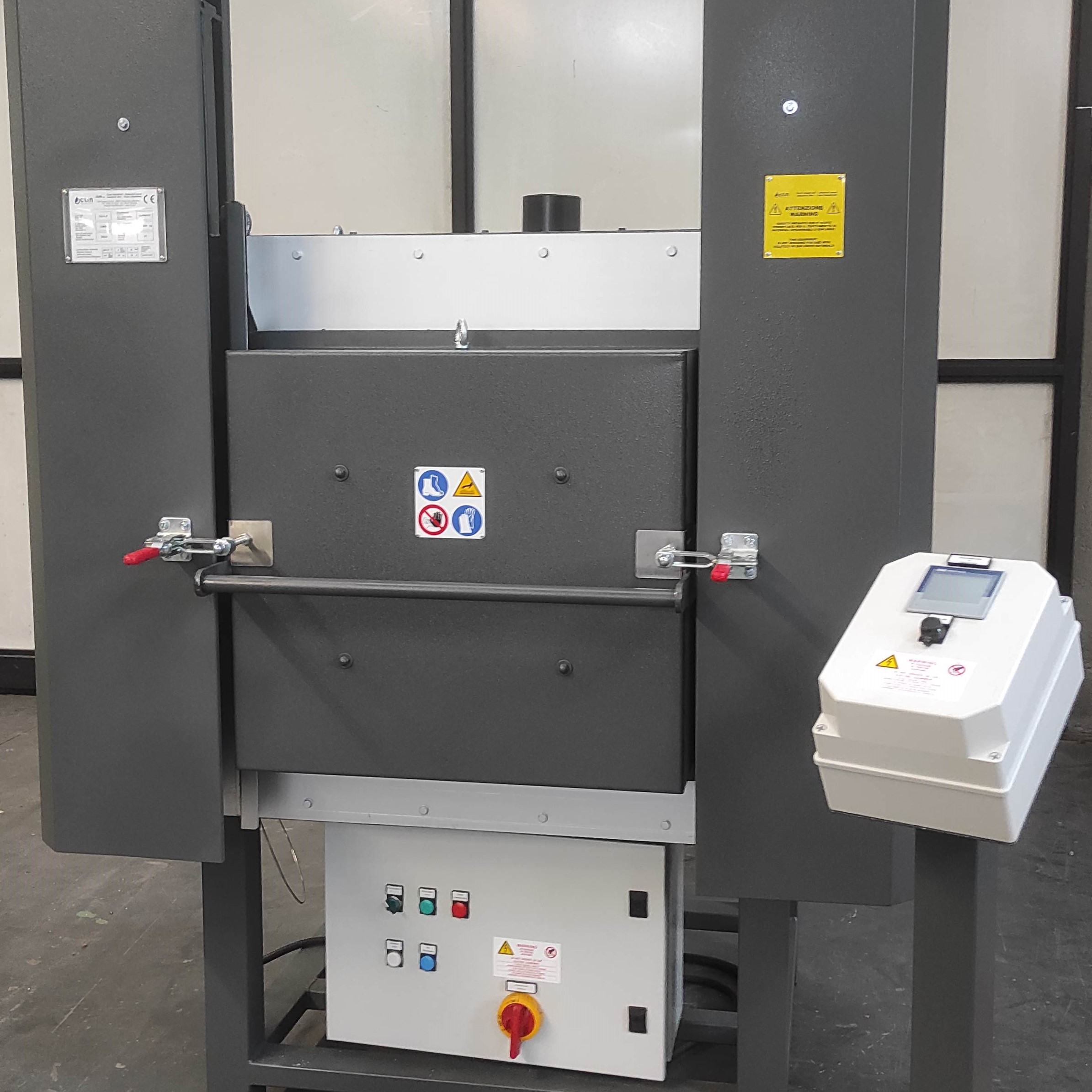

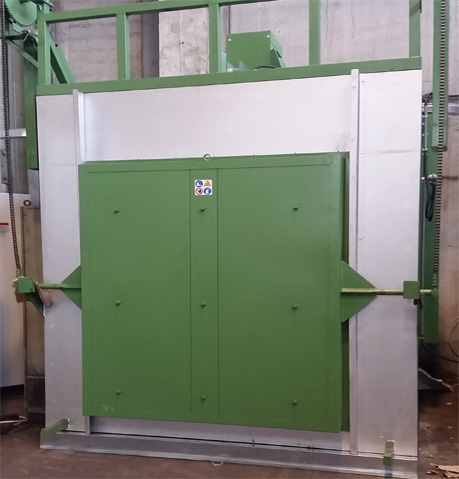

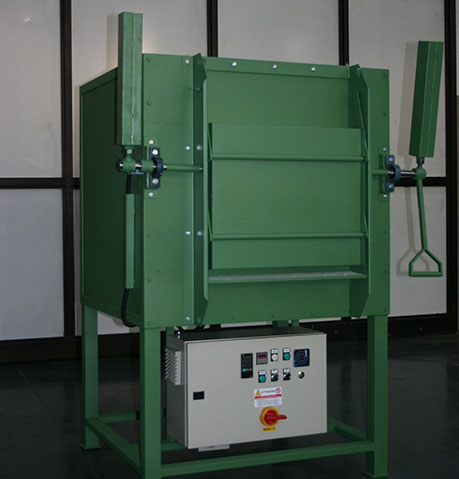

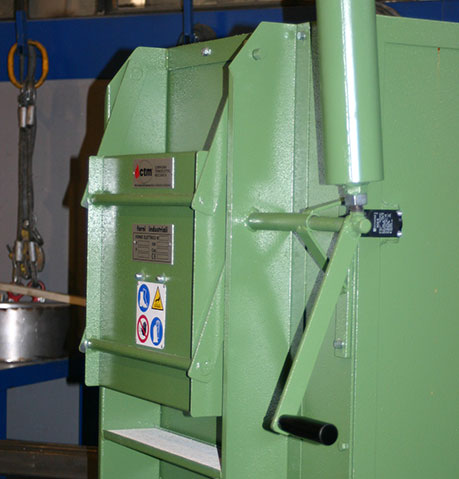

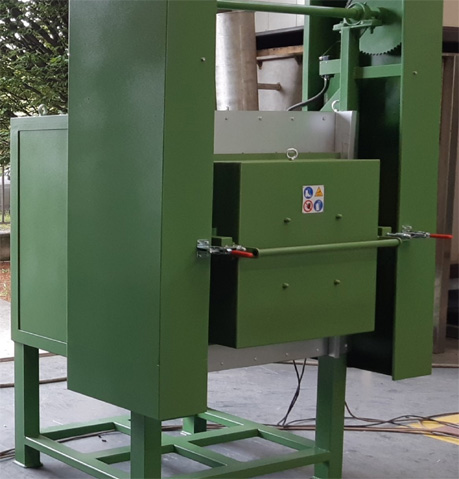

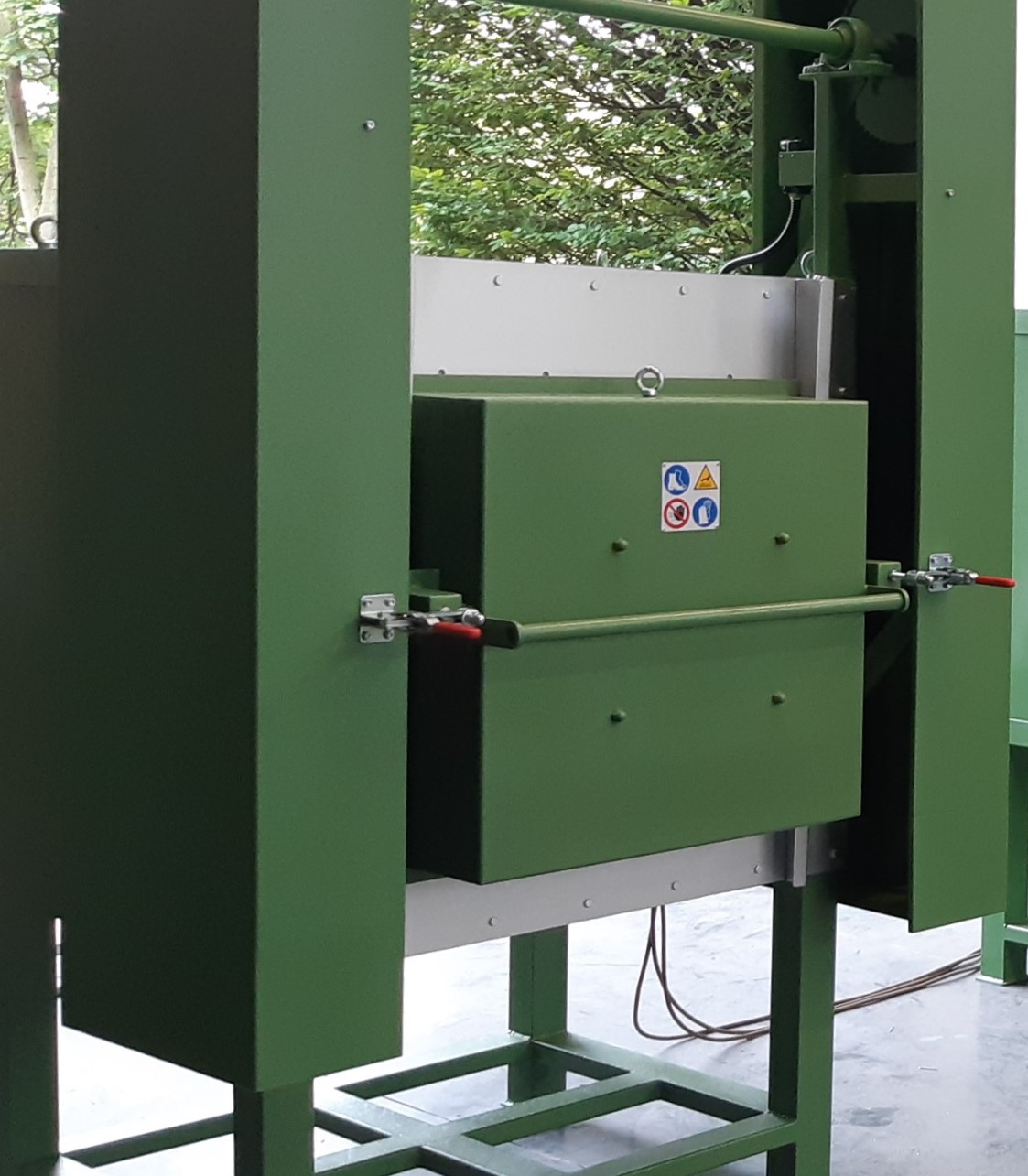

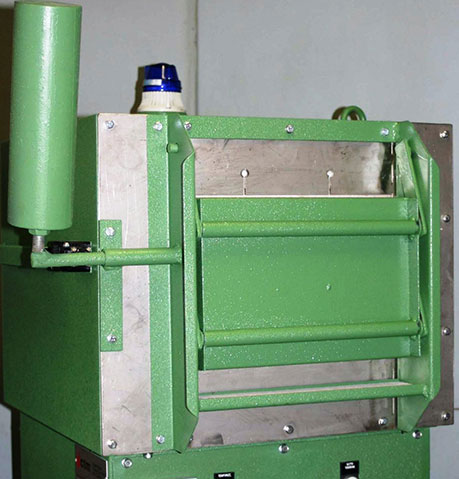

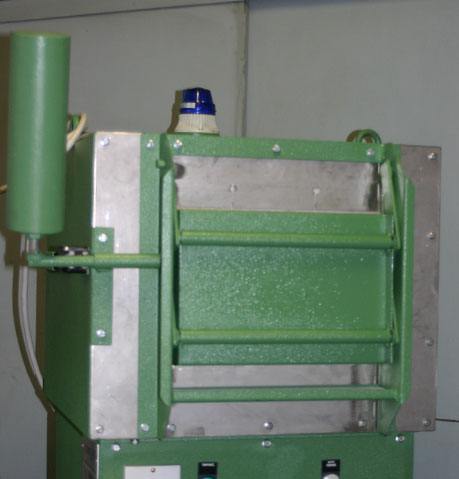

- Door opening: with counterbalanced guillotine with manual or servo-assisted handling system.
- Hardening - metal parts and molds components
- Cementing
- Tempering
- Annealing
- Standardization treatment
| Model TE |
Useful dimensions of the chamber | Rated power | Capacity | ||
| Width | Height | Depth | Kw | Lt | |
| TE/0 | 150 | 120 | 250 | 3.2 | 4.5 |
| TE/1 | 200 | 200 | 300 | 5 | 12 |
| TE/1A | 250 | 150 | 350 | 5.6 | 13.2 |
| TE/2 | 300 | 300 | 400 | 8 | 36 |
| TE/2A | 300 | 200 | 400 | 7 | 24 |
| TE/2B | 300 | 240 | 500 | 10 | 36 |
| TE/2C | 300 | 240 | 600 | 12 | 43 |
| TE/3 | 300 | 300 | 500 | 10 | 45 |
| TE/3A | 400 | 250 | 800 | 18 | 80 |
| TE/3B | 500 | 350 | 500 | 20 | 87 |
| TE/4 | 400 | 300 | 600 | 15 | 72 |
| TE/5 | 500 | 500 | 500 | 25 | 125 |
| TE/6 | 500 | 350 | 1000 | 26 | 175 |
| TE/7 | 600 | 400 | 1000 | 35 | 240 |
