INDUSTRIAL GLASS COATING LINE

temperature MAX 650°

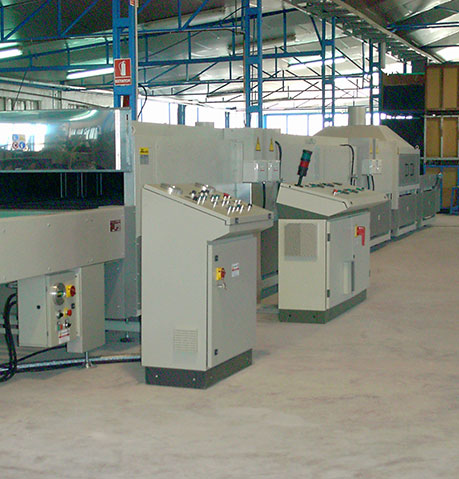

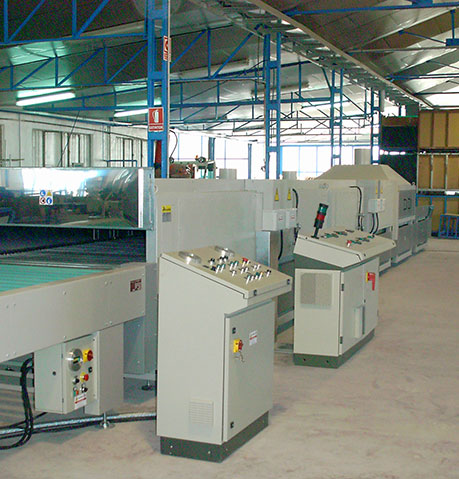

The glass coating line designed by our technical team consists of three process areas: a washing machine to clean the product, a coating machine for colouring and finally the oven area to dry the finished product.





150° using coats
650° using oxides

The glass coating line designed by our technical team consists of three process areas: a washing machine to clean the product, a coating machine for colouring and finally the oven area to dry the finished product.

  1. Horizontal washing machine with demineralized water: stainless steel tank and structure

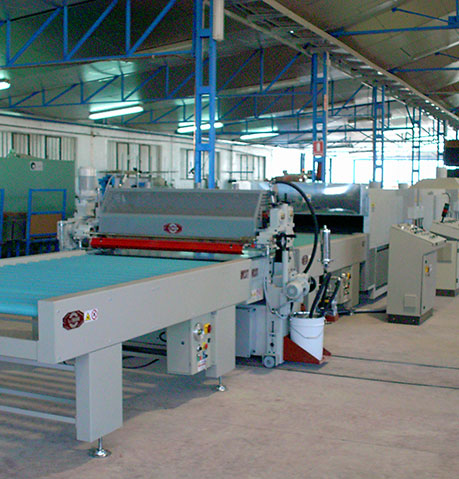

  2. Coating machine with three independent speeds and motorized drive uni
  3. Continuous oven with adjustable speed roller conveyor and independent temperature control over and under the glass sheet.


All the machines are connected with control systems, operating logics and alarms.


  • Motorized roller conveyor from washing machine to coating machine
  • Motorized roller conveyor from coating machine to oven
  • Glass coating
DCM
DCM - INDUSTRIAL BAKING TUNNEL OVEN

CTM builds and designs, based on specific requests and needs of the customer, the material baking tunnel with automatic conveyor.
DL
DL - INDUSTRIAL TUNNEL FURNACE WITH VENTILATED CHAMBERS

Our modular tunnel with ventilated chambers enables to determine the optimal length of the sheets to achieve an efficient hourly production of extrusion.
DZ
DZ - INDUSTRIAL VENTILATED TUNNEL FURNACE

CTM realizes, designing and customizing according to customer's specifications, tunnel ovens suitable for thermal processing that require automation and versatility. The operating temperatures, obtained by sets of electrical resistances, or indirect heat exchangers powered by gas, natural gas or fuel oil burners, are in a range from 80°C to 200 °C.
TEC
TEC - INDUSTRIAL CHAMBER OVEN WITH MOBILE DOLLY

Our model TEC - oven with movable dolly is able to perform different machining processes. Thanks to its versatility in the design phase we are able to meet your specific requirements.
SDD
SDD - INDUSTRIAL TUNNEL FURNACE WITH ROLLER CONVEYOR

The SDD model - tunnel furnace suitable for sintering diamond discs - carries out the treatment in a controlled atmosphere of nitrogen.
TC
TC - INDUSTRIAL GLASS CHEMICAL TEMPERING OVEN

Ctm Srl, working in glass field for a long time, proposes plants for the treatment of glass chemical tempering. The process is done at temperatures that do not cause optical deformation.
BB
BB - INDUSTRIAL GLASS BENDING FURNACES

Glass bending furnace with mobile ceiling and PLC-controlled movement.
Electronic regulation with functioning and travel control.
