CEV
INDUSTRIAL VENTILATED PIT OVEN
MAX 600°

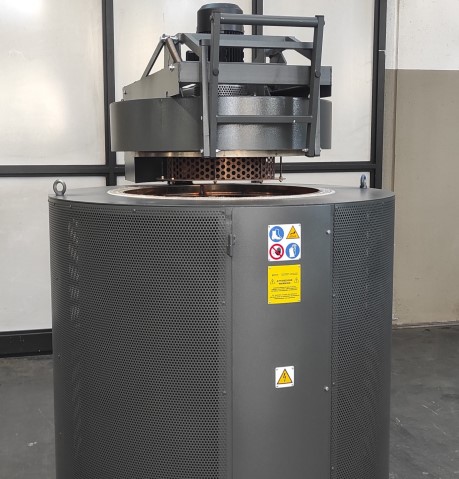

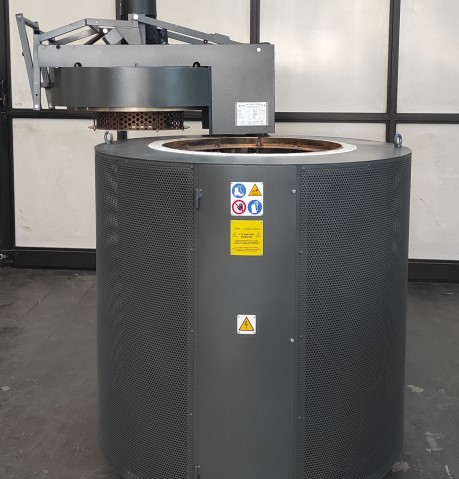

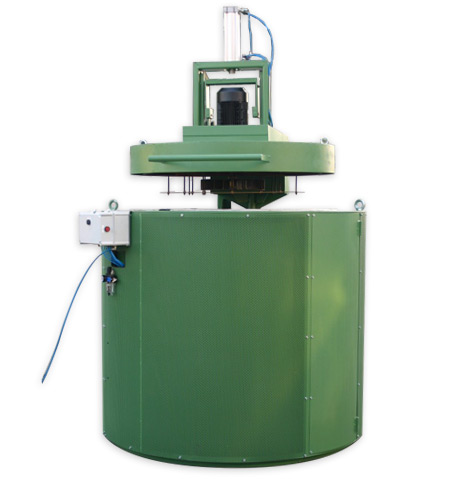

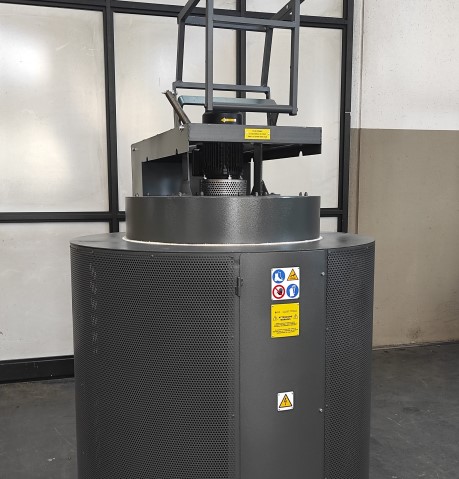

The ventilated pit furnace CEV is an expression of our history. Installed in many manufacturers of metal parts including the major manufacturers of springs, this model consists of a metal structure with air circulation with walls of stainless steel sheet forming the heat absorbing, high thickness sandwich with cavity for air circulation.
The ventilated pit furnace CEV is an expression of our history. Installed in many manufacturers of metal parts including the major manufacturers of springs, this model consists of a metal structure with air circulation with walls of stainless steel sheet forming the heat absorbing, high thickness sandwich with cavity for air circulation.
The cylindrical inner chamber is in stainless steel.

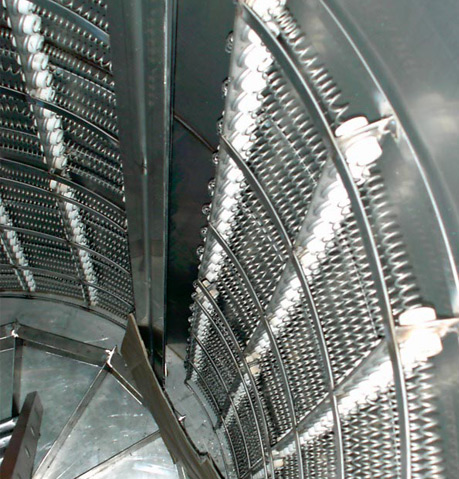

Special supports support the sets of resistances for electric heating, ventilation is vertical.
Throttle valves, with manual or servo-assisted control, are installed for the entry and release of air.
- Electronic adjustments of temperature through static power relays with the possibility of programming and data logging.

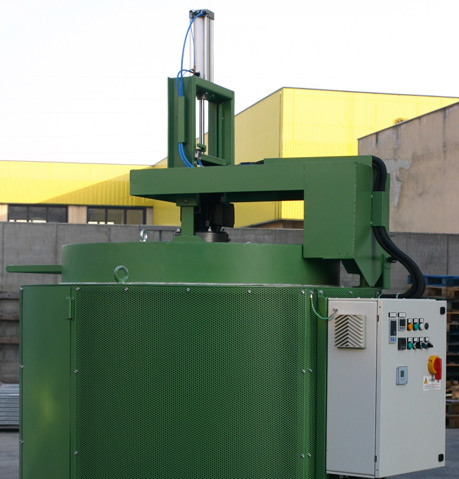

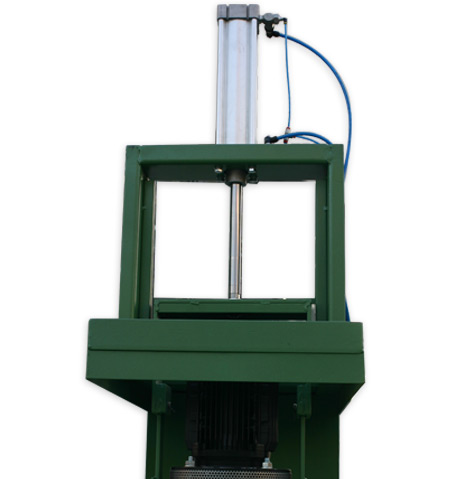

- Cover opening/closing system: manual or servo-assisted.
If required, precision instrumentation that will allow the control of the cooling cycle can be installed.
- Tempering of metal parts
- Springs treatment
- Treatment of shaped wire products
Stainless steel baskets.
| Model CEV |
Useful dimensions of the chamber | Rated power | |
| Diameter | Height | Kw | |
| CEV 400/0 | 400 | 500 | 12 |
| CEV 400/1 | 500 | 600 | 15 |
| CEV 400/2 | 500 | 700 | 18 |
| CEV 400/3 | 600 | 900 | 24 |
| CEV 400/4 | 700 | 1000 | 30 |
| CEV 600/0 | 400 | 500 | 15 |
| CEV 600/1 | 500 | 600 | 18 |
| CEV 600/2 | 500 | 700 | 24 |
| CEV 600/3 | 600 | 900 | 30 |
| CEV 600/4 | 700 | 1000 | 36 |
