SEV 250
INDUSTRIAL VENTILATED CHAMBER OVEN
MAX 300°
SEV is the CTM reference model for ventilated chamber treatments. We propose a dual basic version, with different sizes, depending on the maximum temperature reached (250°C or 400°C). Specific requests are managed to meet your needs.
SEV is the CTM reference model for ventilated chamber treatments. We propose a dual basic version, with different sizes, depending on the maximum temperature reached (250°C or 400°C). Specific requests are managed to meet your needs.

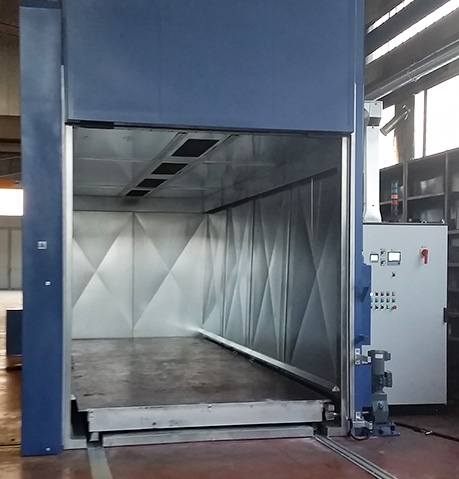

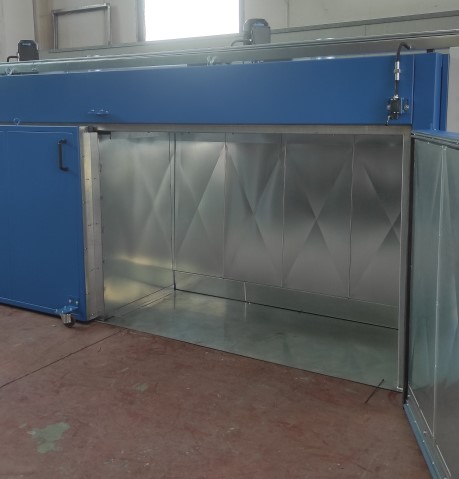

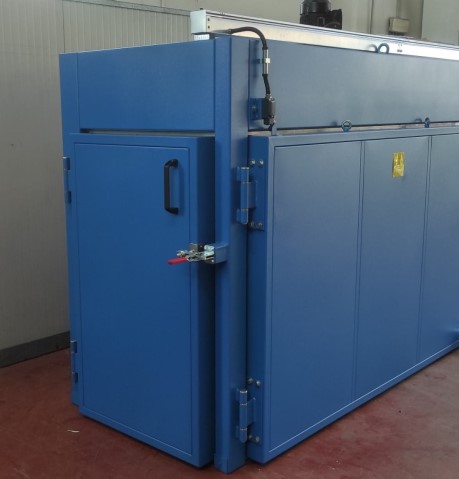

SEV 250, with maximum operating temperature of 250 °C, consists of an air circulation metal structure with walls made of stainless steel sheet forming the high thickness air recirculation gap.
With regard to the heating of the chamber we can use electric resistance units or indirect heat exchangers powered by gas, methane or fuel oil burners.
Forced air circulation takes place by means of special fans suitable for high temperatures. Circulation is optimized by flow rate adjusters.
We install throttle valves for air entry or exit with manual or servo-assisted adjustments.
- Versions for closed or open loop with horizontal or vertical split currents. Electronic adjustments of temperature through static power relays with the possibility of programming and data logging.

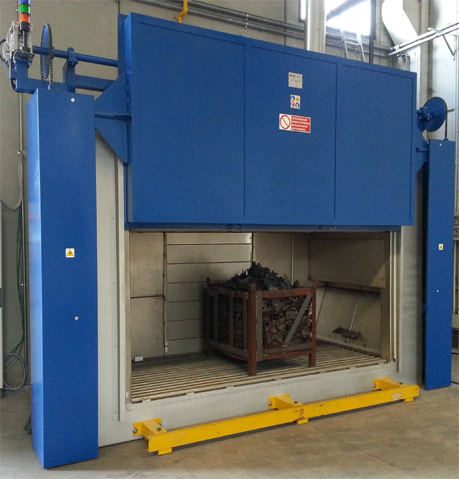

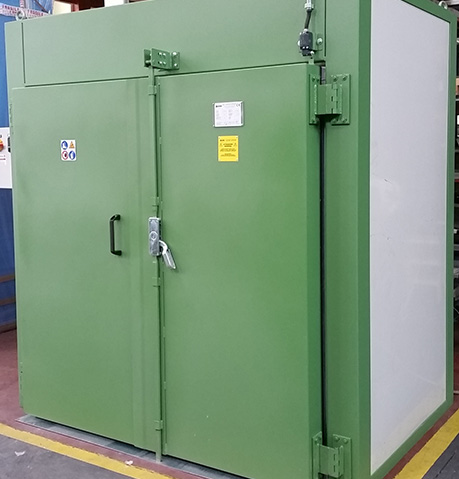

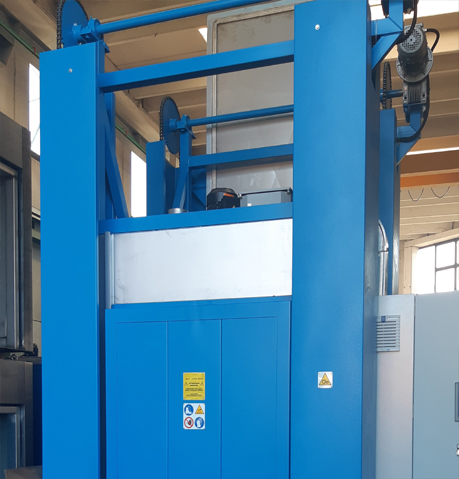

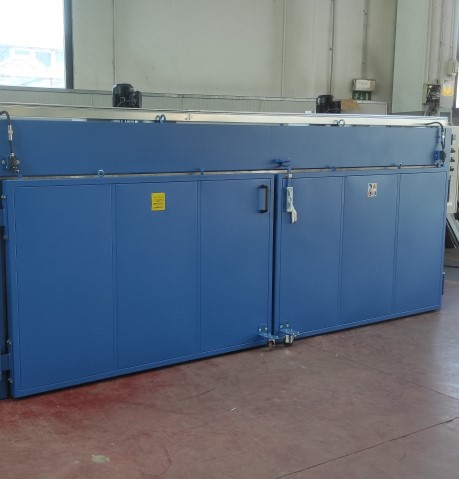

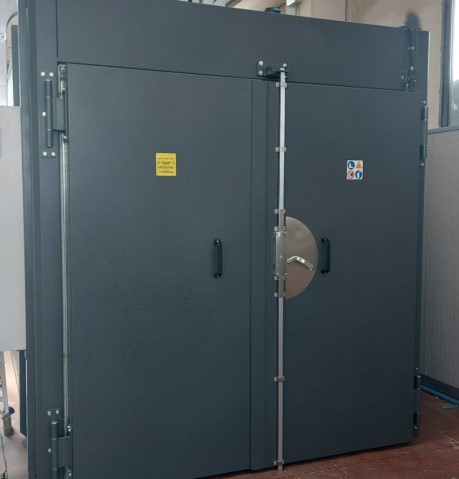

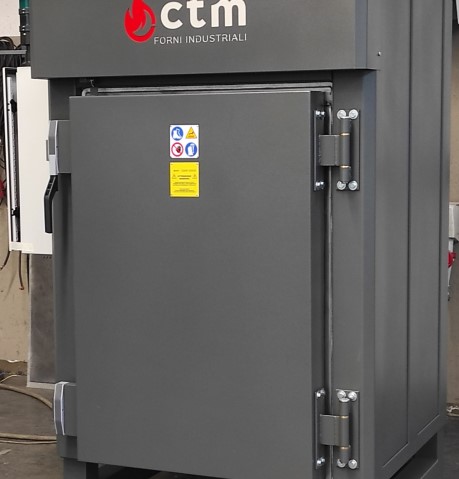

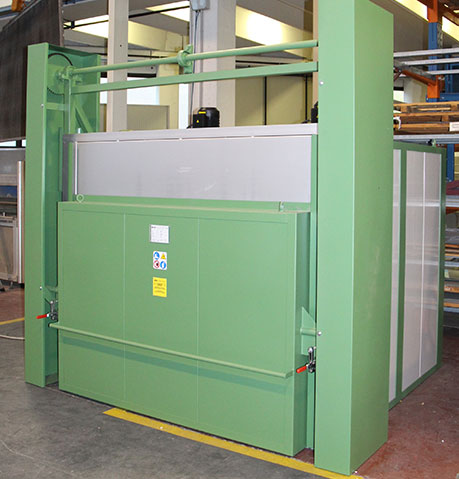

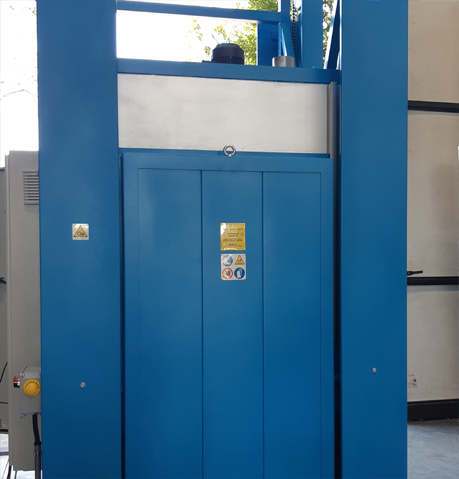

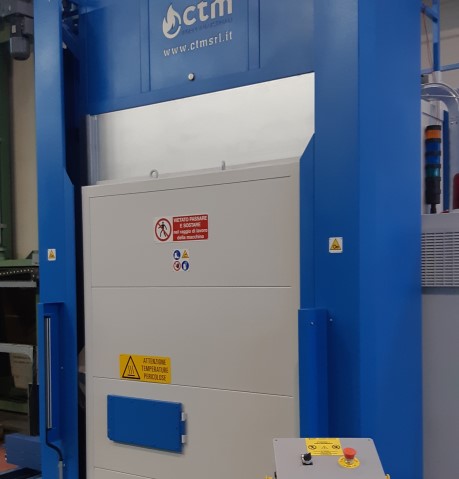

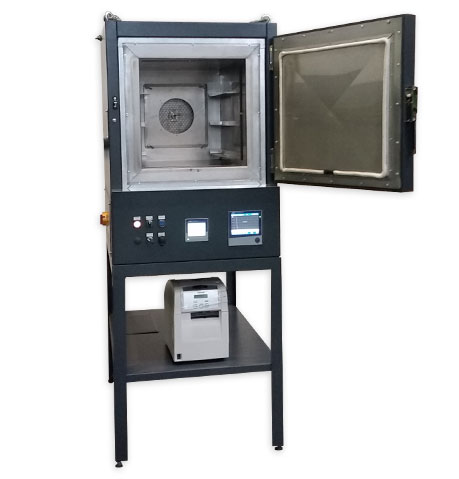

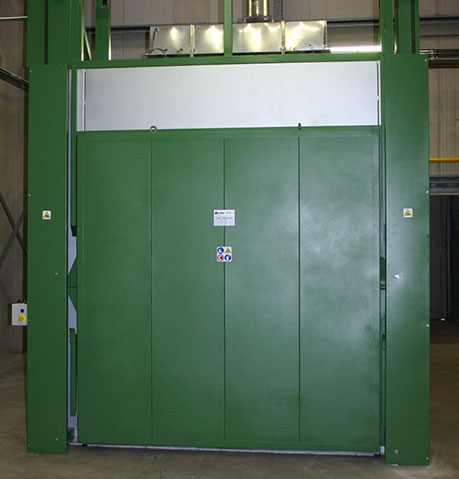

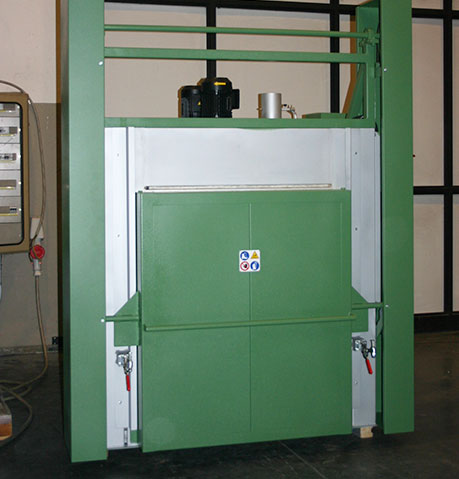

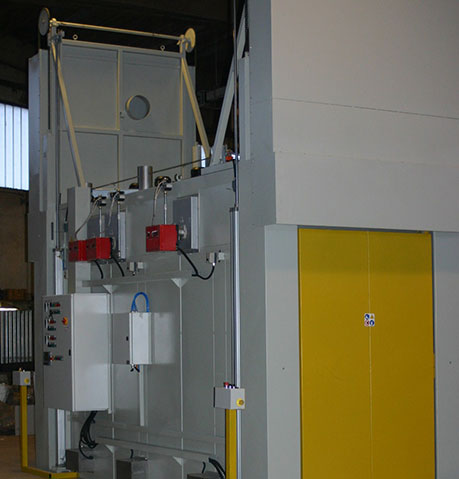

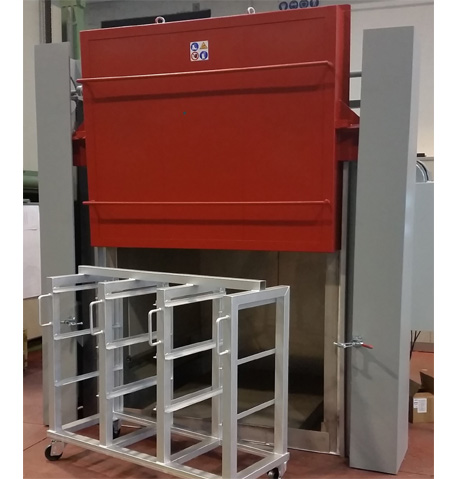

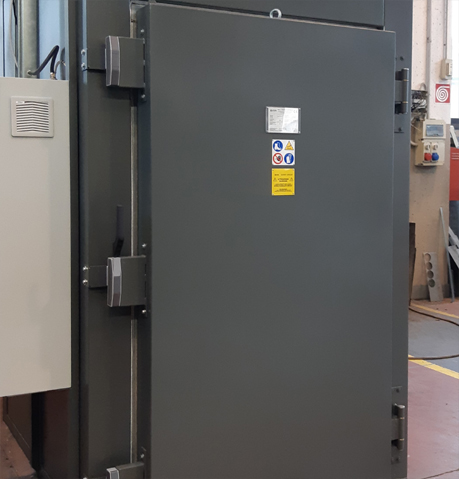

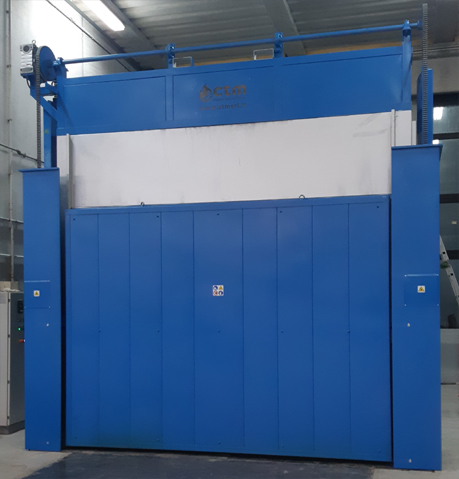

- Door opening: with hinge or counterbalanced guillotine with manual or servo-assisted handling system.
If required, precision instrumentation that will allow the control of the cooling cycle can be installed.
- Annealing of light alloys
- Ageing of plastics
- Softening of plastics
- Drying of powders and granulates for molding
- Polyurethane treatments
- Dry heat sterilization for laboratories
- Dry heat sterilization for industry
- Polymerization of composite materials
- Plasticization of metal surfaces

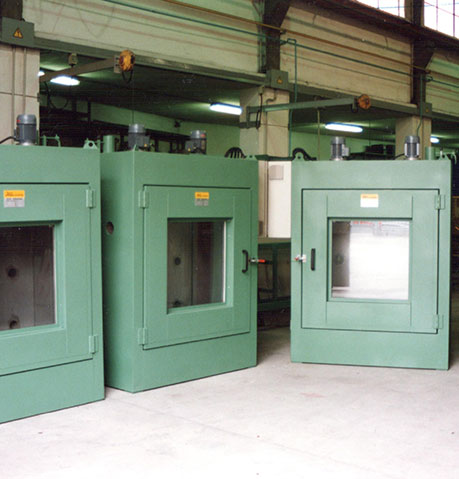

- Oven for laboratories
- Sterilization and drying of medical accessories
Hood positioned on the door.

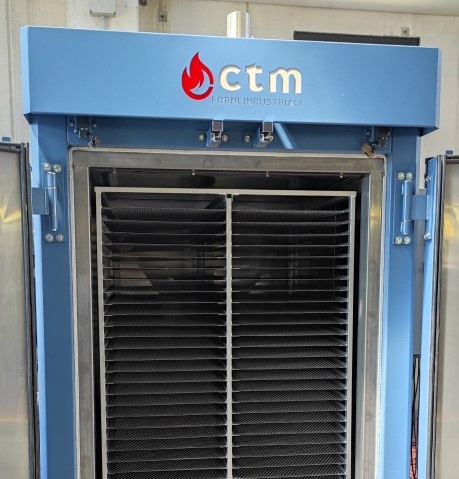

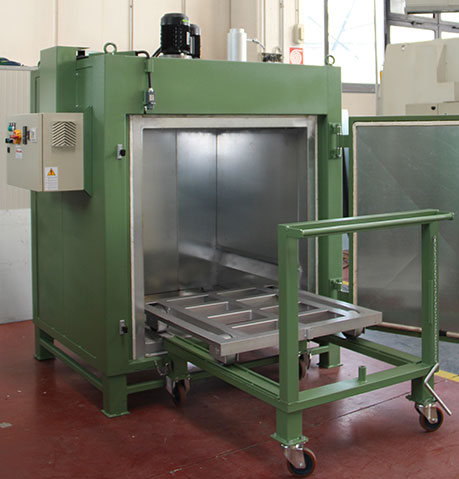

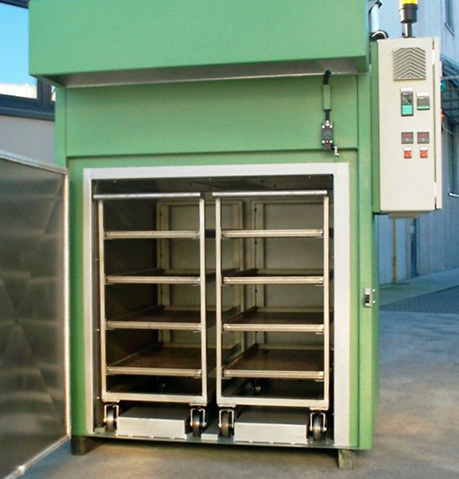

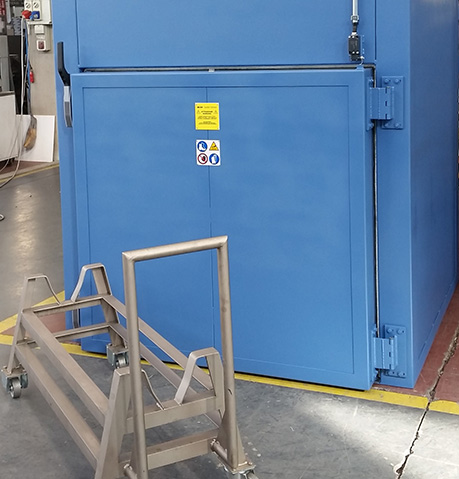

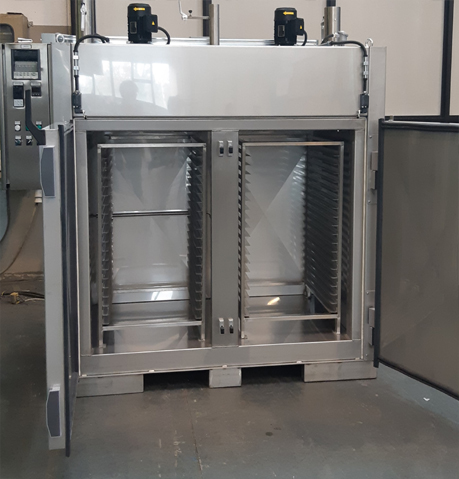

Dollies with mobile or fixed shelves in stainless steel sheet.
Specific equipment for individual needs.
| Model SEV 250 |
Useful dimensions of the chamber | Rated power | Capacity | ||
| Width | Height | Depth | Kw | Lt | |
| SEV 250/0 | 350 | 350 | 400 | 1.6 | 50 |
| SEV 250/1 | 600 | 500 | 600 | 3 | 180 |
| SEV 250/2 | 600 | 800 | 600 | 4.8 | 280 |
| SEV 250/3 | 700 | 900 | 800 | 6 | 500 |
| SEV 250/4 | 850 | 900 | 1000 | 9 | 760 |
| SEV 250/5 | 1000 | 1250 | 1000 | 12 | 1250 |
| SEV 250/6 | 1000 | 1500 | 1500 | 18 | 2250 |
| SEV 250/7 | 1000 | 1000 | 2000 | 18 | 2000 |
| SEV 250/8 | 1200 | 1500 | 2000 | 32 | 3600 |
| SEV 250/9 | 1500 | 1800 | 2000 | 36 | 5400 |
| SEV 250/10 | 2000 | 2000 | 2000 | 48 | 8000 |
| SEV 250/11 | 2000 | 2000 | 3000 | 54 | 12000 |
