RF

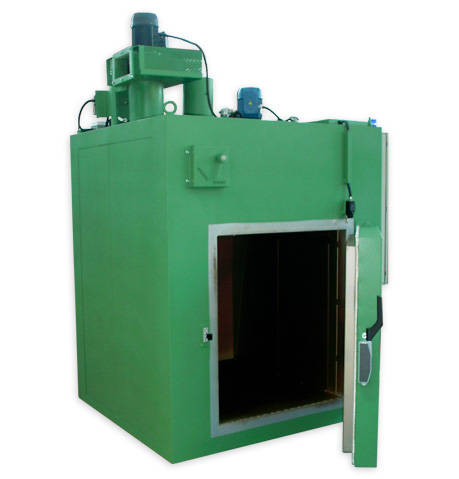

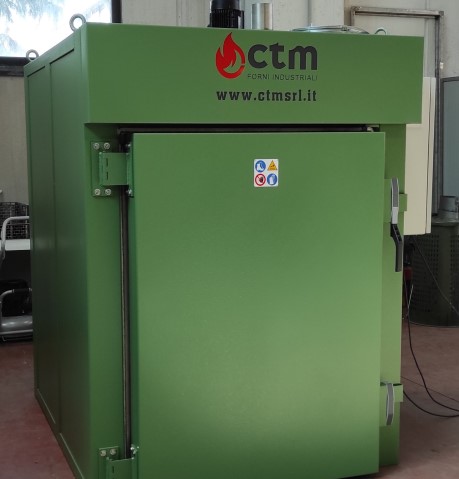

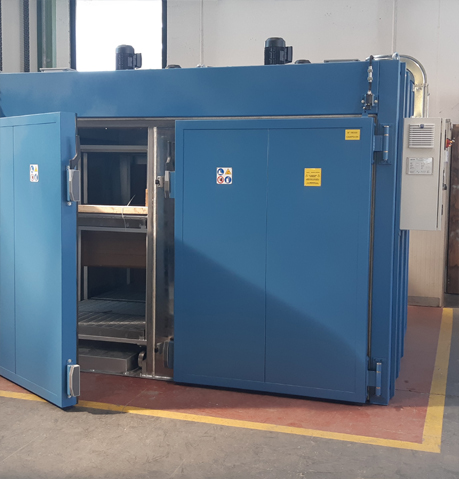

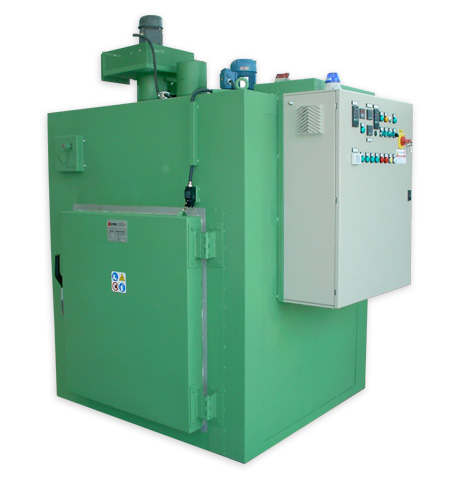

INDUSTRIAL VENTILATED CHAMBER OVEN
MAX 150°

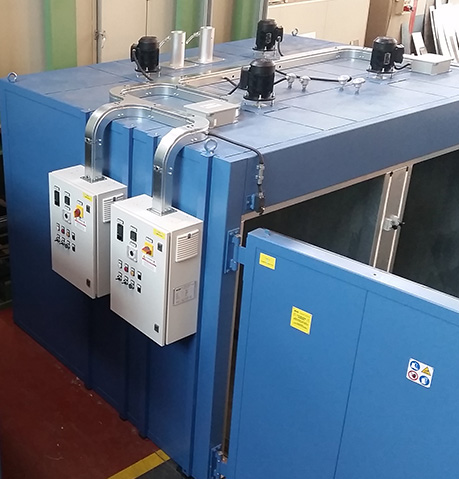

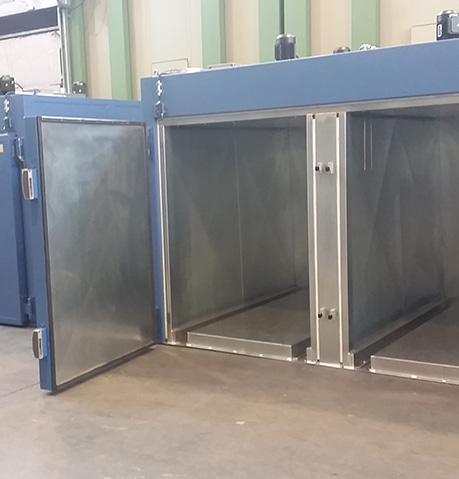

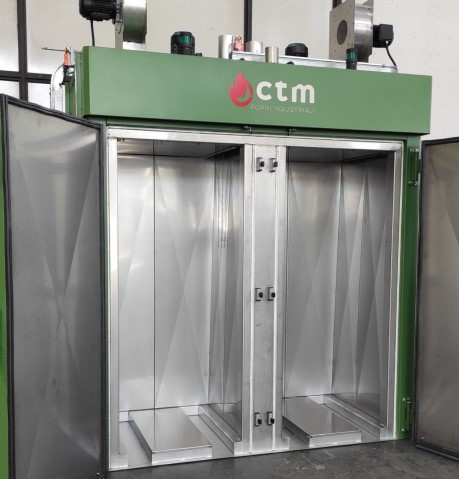

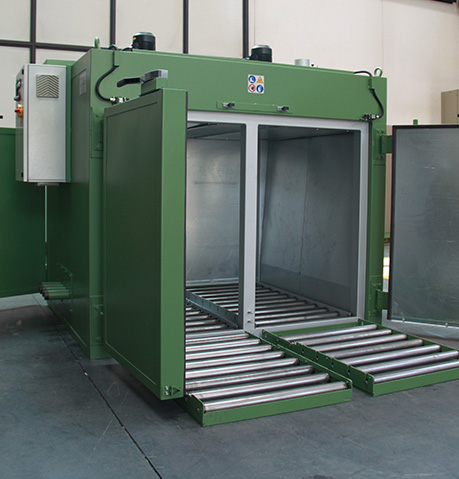

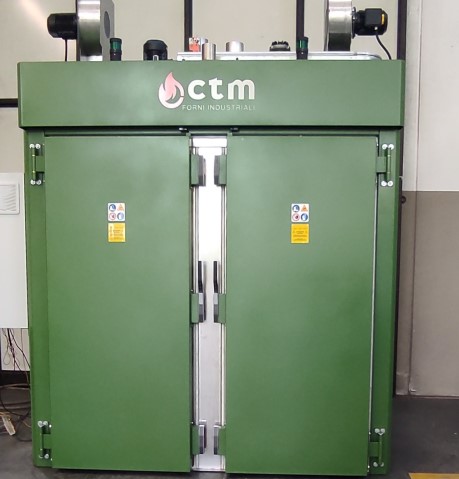

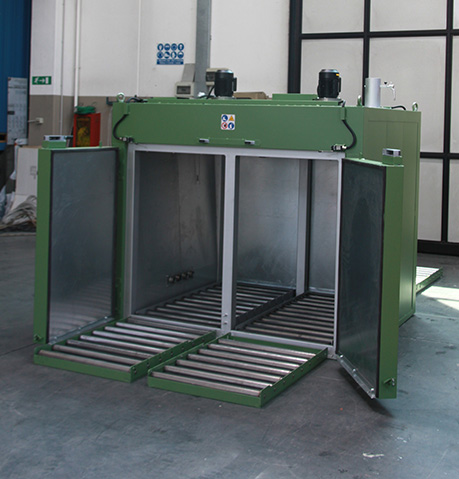

Our products range includes as well a furnace with multiple ventilated chambers positioned horizontally or vertically.
RF, which externally is a metallic structure with air circulation with walls of stainless steel sheet, differs in its design and in the construction of the inner chambers that determine the effectiveness of the process and the efficiency of your processing.
Our products range includes as well a furnace with multiple ventilated chambers positioned horizontally or vertically.
RF, which externally is a metallic structure with air circulation with walls of stainless steel sheet, differs in its design and in the construction of the inner chambers that determine the effectiveness of the process and the efficiency of your processing.
This added value is achieved thanks to the methodology used for air circulation.
Special fans coupled with sets of electric resistances or hot water, steam, or thermal oil heat exchangers, lead to a homogeneous temperature inside each chamber.
More details and specifications are available at our company.
- Electronic adjustments of temperature through static power relays with the possibility of programming and data logging.
- Throttle valves for air input and output with manual or servo-assisted adjustment.

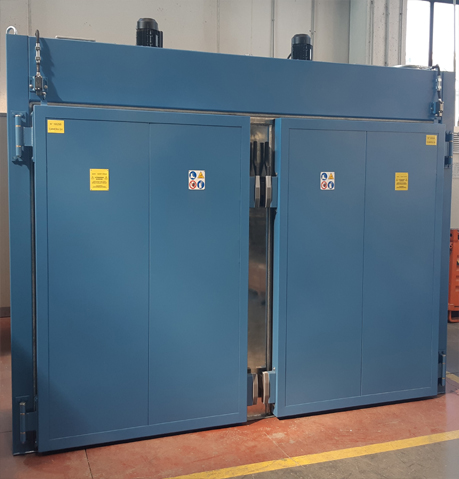

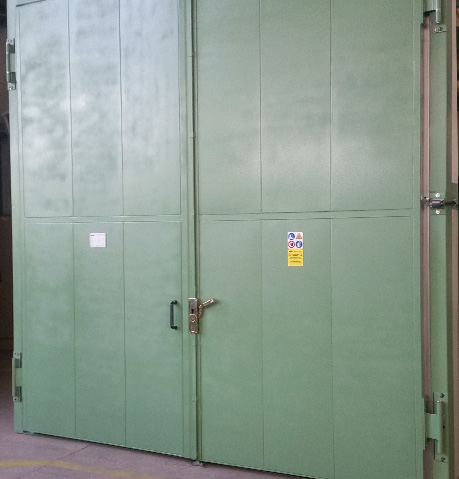

- Door opening: with hinge or counterbalanced guillotine with manual or servo-assisted handling system.

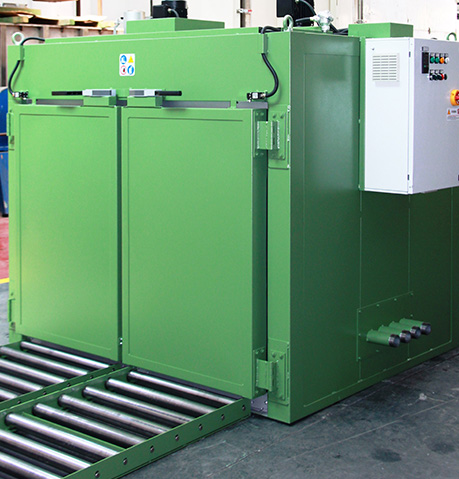

- Drums Preheat

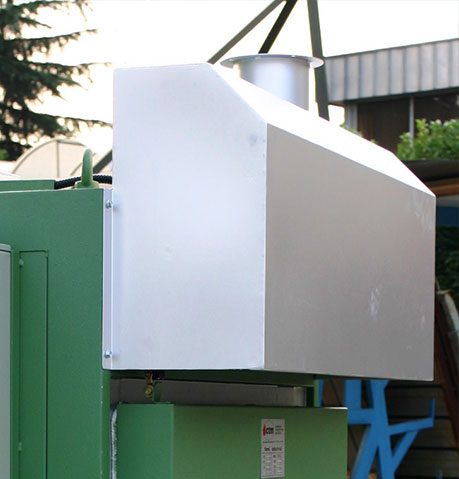

Hood positioned on the door.

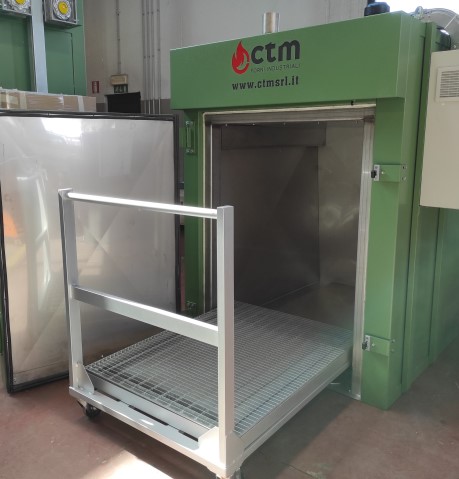

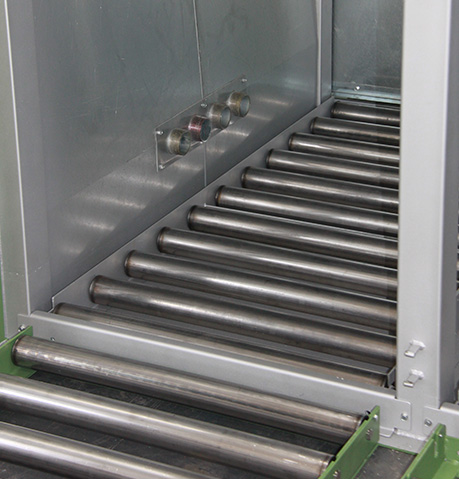

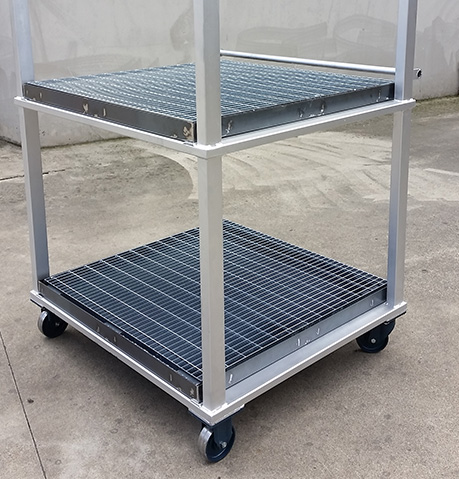

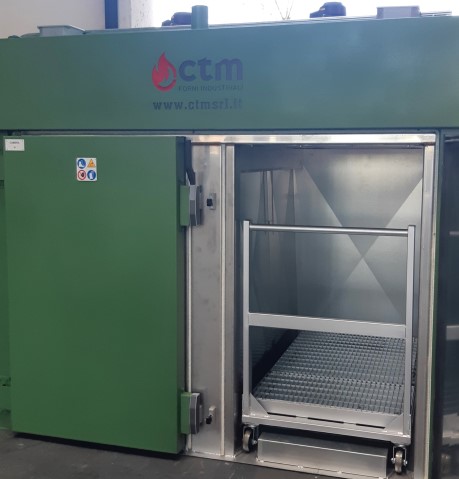

Dollies for drums.
Specific equipment for individual needs.
| Model RF |
Useful dimensions of the chamber | Rated power | Chamber | ||
| Width | Height | Depth | Kw | No. | |
| RF/1C | 1400 | 1300 | 1400 | 6 | 1 |
| RF/2C | 1400 | 1300 x 2 | 1400 | 9 | 2 |
| RF/3C | 1400 | 1300 x 3 | 1400 | 12 | 3 |
